Product Introduction-Flexible Chain Transfer System

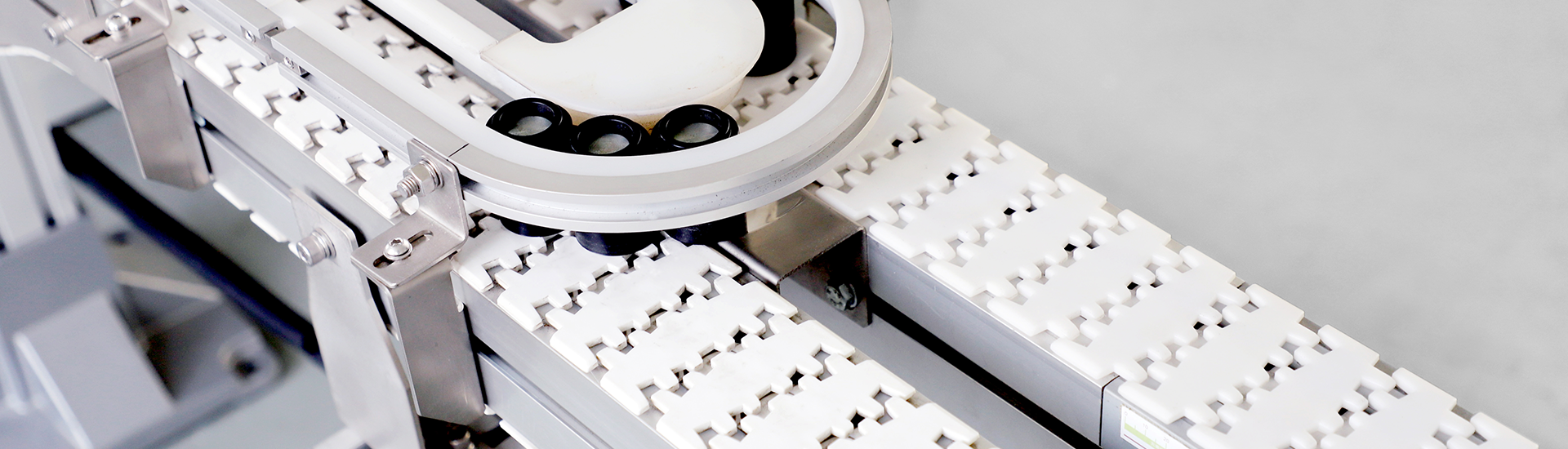

Flexible line layout with a small turning radius, capable of completing horizontal, inclined, and turning conveyance in a single conveyor line, allowing for multi-level and multi-angle transportation. Modular design with independent components, featuring a simple and lightweight structure, easy assembly, and convenient maintenance. The chain section is made of high-quality materials with excellent wear and corrosion resistance. The conveying surface is smooth and flat with minimal friction, ensuring stable transportation. It can convey cylindrical cups, various bottles, and boxed products, and is widely used in industries such as cosmetics, pharmaceuticals, automotive parts, food, and beverages.
Modular
Modular

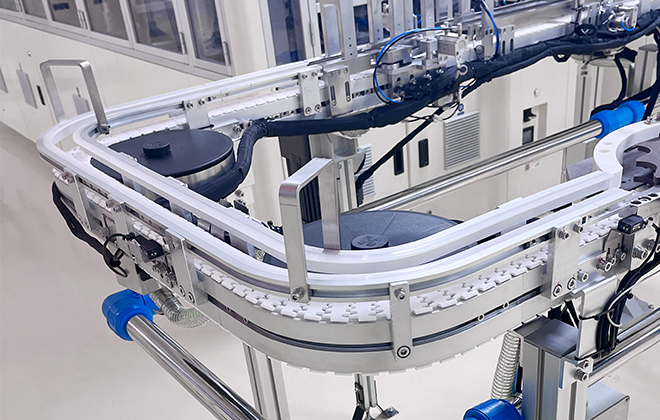

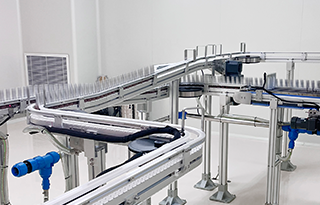

Straight and Turning Conveyor
Capable of straight line,climbing and -
multi-turning conveying.
Maximum allowable tension≤1205N
Reversible operation is forbidden
Maximum conveying speed 40 m/min
Straight sections should be reserved between the curves
Straight sections at the drive end should be longer than 1 meter.
Modular

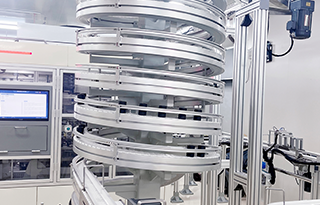

Spiral Conveyor
Ideal for elevating and material - - - - - - -
buffering in confined spaces.
Total load capacity≤100 kg
Single part weight ≤3 kg
Reversible operation is forbidden
Maximum conveying speed 40 m/min
Effective conveying height difference≤ 2 m
Uses a special spiral chain plate,
customized for use on a single machine.
Modular

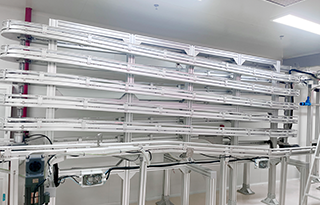

Cache conveyor
Flexible buffer conveyor, capable of lifting or lowering materials in a circular spiral, with buffer conveying function during the conveying process.
